Focwave8000 Series Radar Level Gauge leverages advanced FMCW tech. Boasting ±2mm precision, anti-adhesion capability, and compact antennas, it delivers stable, reliable liquid level detection for diverse industrial scenarios.
1. Working Principle of Radar Level Transmitter

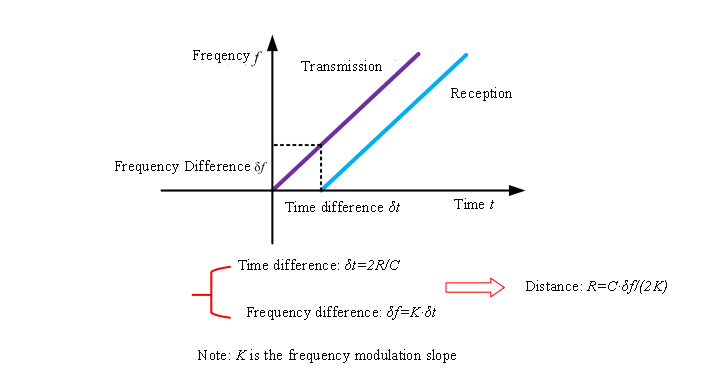

（1）Principle: The Focwave8000 intelligent frequency - modulated radar level gauge adopts Frequency - Modulated Continuous Wave (FMCW) technology. The antenna transmits high - frequency frequency - modulated radar signals, and the frequency of the radar signals increases linearly. The transmitted radar signals are reflected by the measured medium and then received by the same antenna. At the same moment, the frequency difference between the transmitted signal frequency and the received signal frequency is proportional to the measured distance. The collected frequency difference signal is subjected to Fast Fourier Transform (FFT) to obtain the spectrum of the reflected echo, and the distance to the target to be measured is calculated based on this.
Working Principle of Radar Lever Transmitter
- Millimeter - wave radar, with a maximum measurement accuracy of ±2mm and a minimum measurement blind zone of 0.05m.
- Smaller antenna size meets the measurement requirements of more working condition scenarios.
- Various lens antennas, smaller emission angles, more concentrated energy, and stronger echo signals. Under the same working and mining conditions, it has higher reliability compared to other radar products.
- It has stronger penetration and can be used normally even in the case of adhesion and condensation.
- The dynamic signal range is larger, and the measurement of low dielectric constant media is more stable.
- Multiple measurement modes, and the radar responds in the fast measurement mode.
2. Focwave8000 series radar level transmitter
This is our Focwave8000 series radar level transmitter from Jiangsu Huahai Measurement and Control Technology Co., Ltd. It is a high - precision instrument series used to measure the level of liquids. With advanced radar technology, products in this series can accurately detect the liquid level in various containers, providing reliable data for industrial production processes.
Focwave8000 series radar level transmitte
3. Installation Examples

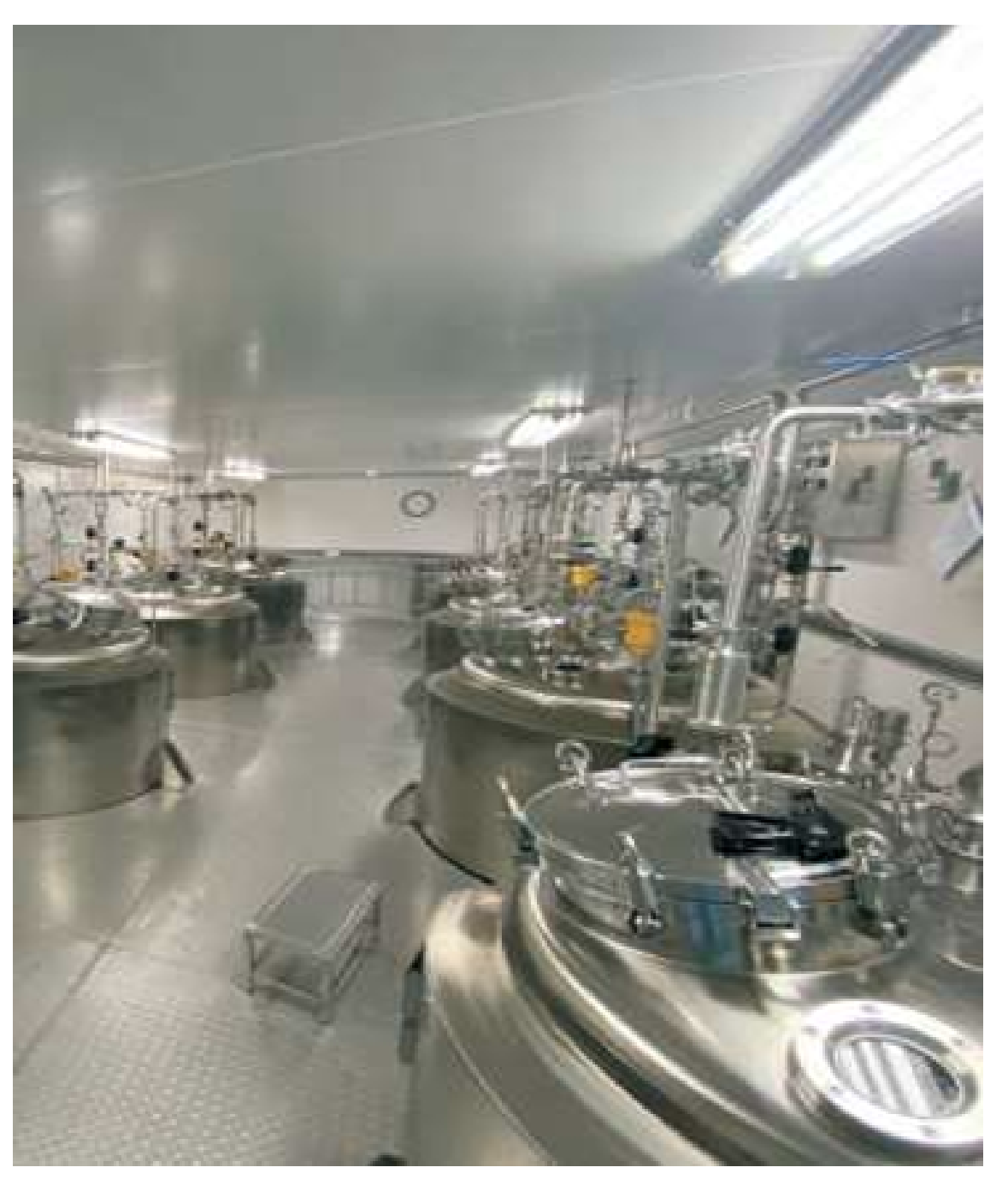

Traditional Chinese Medicine Fermentation Tank (2 meters)

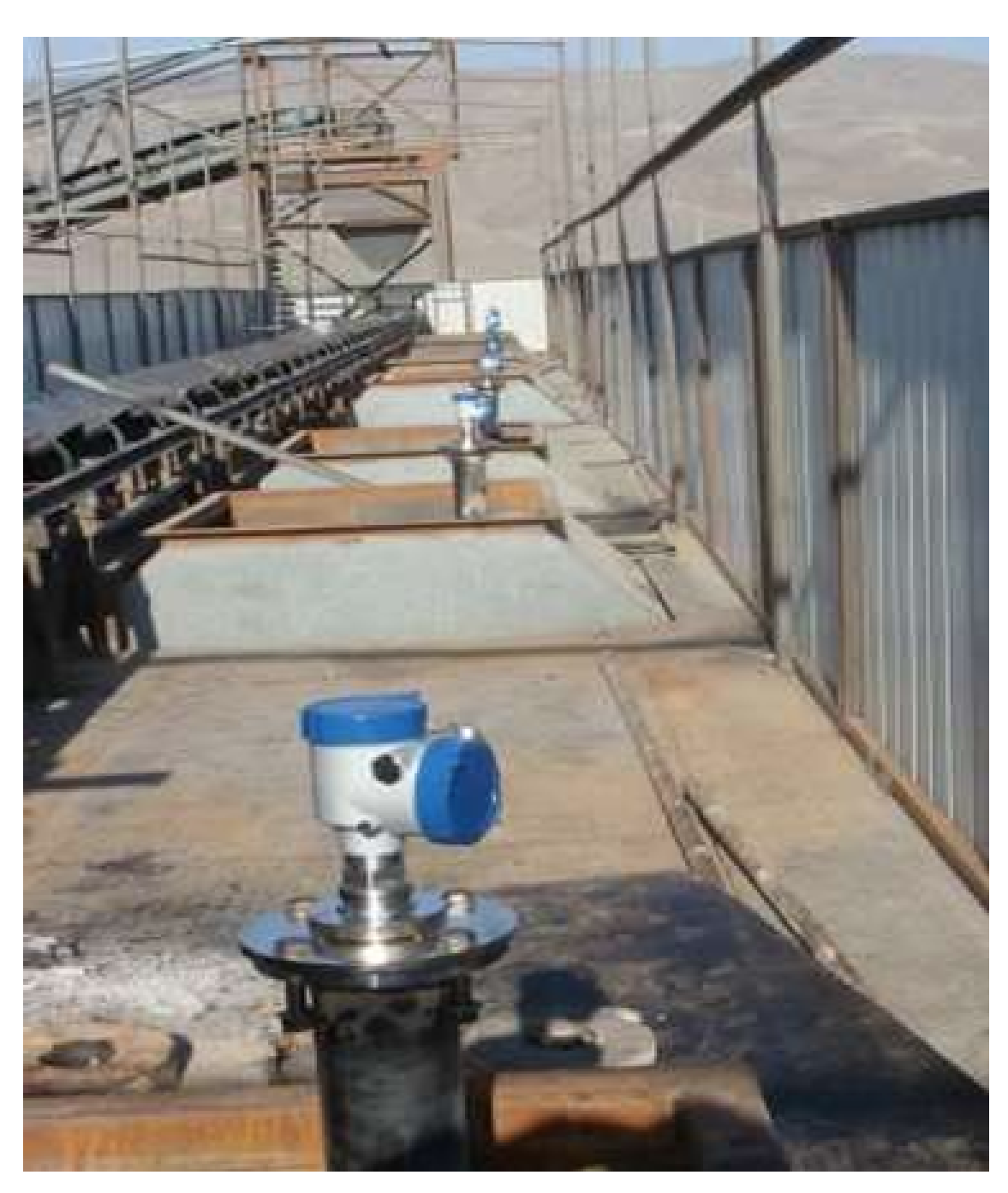

Coal Powder Silo for the Energy Industry in Xinjiang

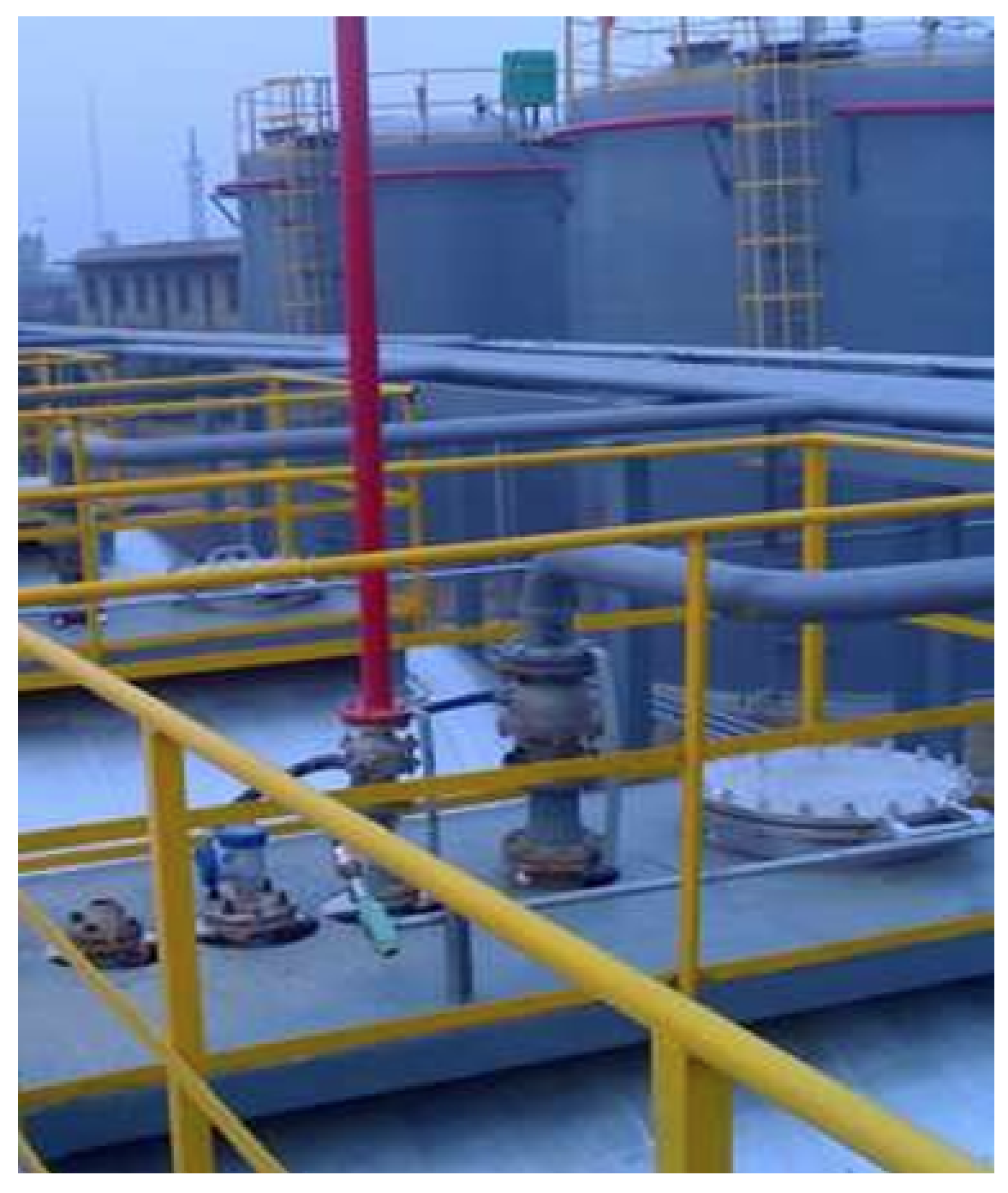

Petroleum Addictives

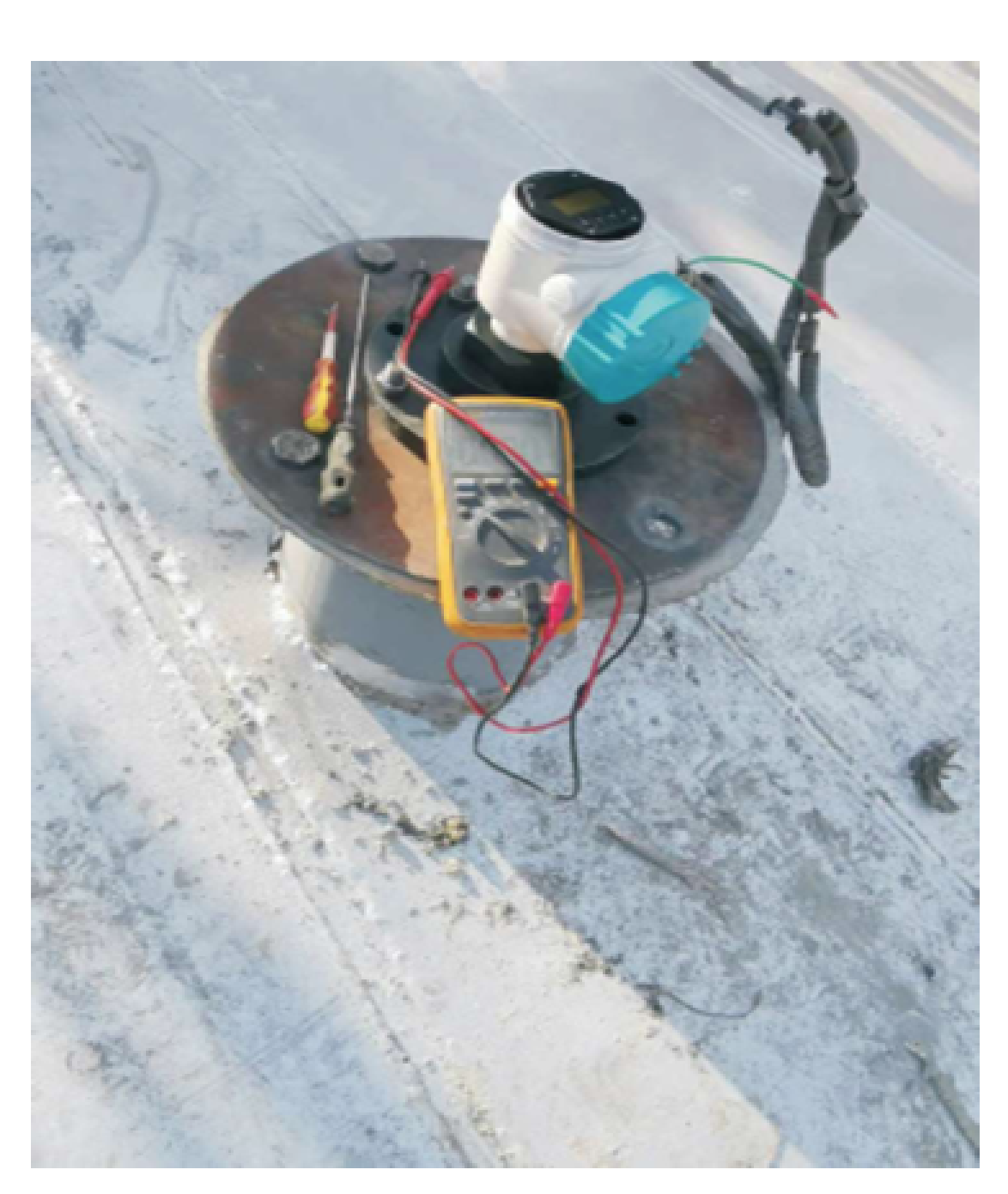

Petroleum Process Storage Tank
