Analysis of improper on-site installation of an EMF, with standard installation guidelines proposed to avoid such issues and ensure accurate measurement and safe operation.
1. Application Scenario

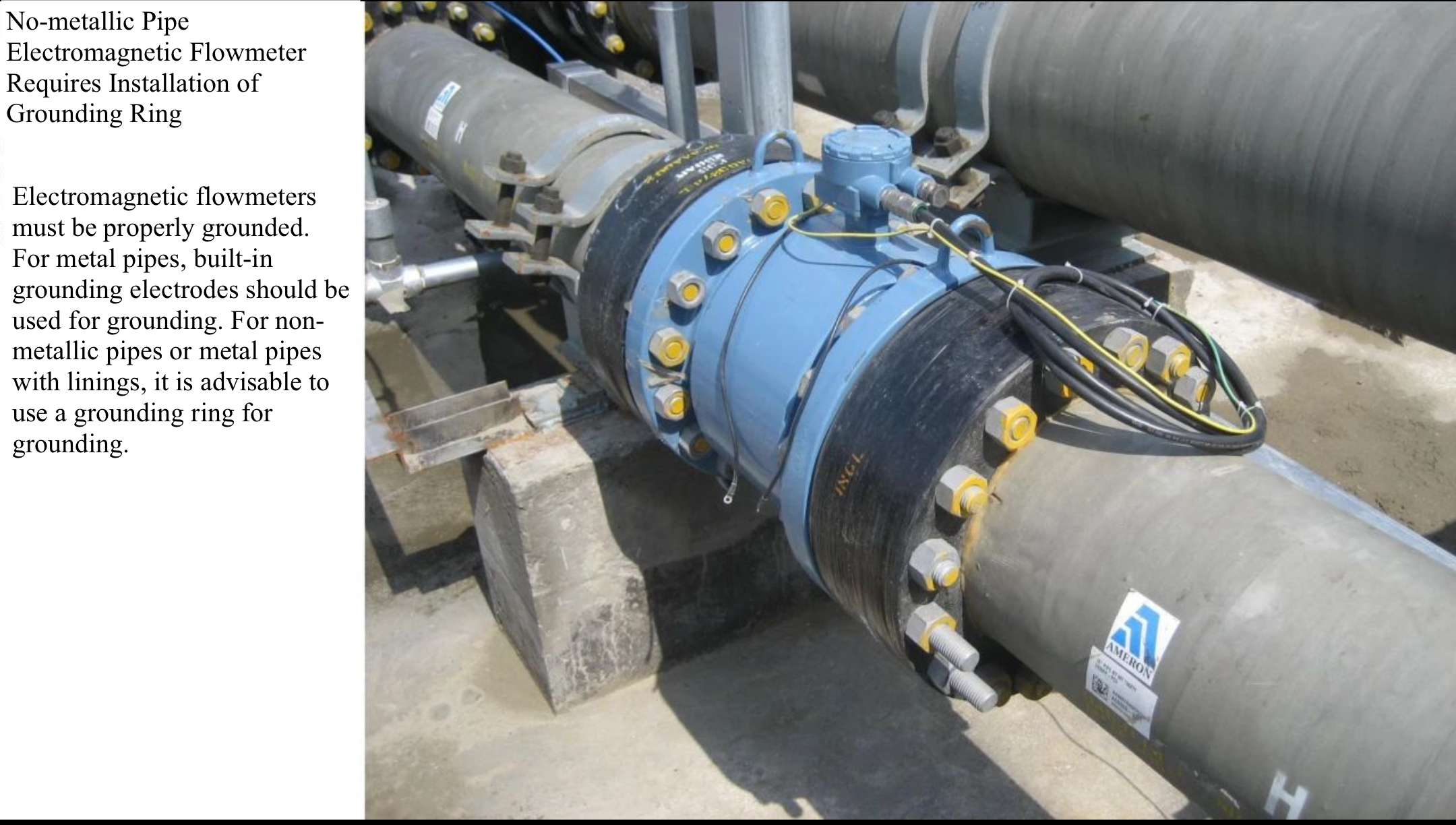

The electromagnetic flowmeter is installed on a non-metallic pipe (e.g., fiberglass-reinforced plastic), which is non-conductive and cannot provide a natural grounding path for the instrument
2. Installation Status
No grounding rings are installed at the flanges of the flowmeter, and no obvious external grounding wires are visible.
According to installation specifications, grounding rings are required for electromagnetic flowmeters installed on non-metallic pipes or lined metal pipes. For metal pipes, built-in grounding electrodes can be used.
3. Potential Risks
Measurement inaccuracy: Poor grounding causes electromagnetic interference, leading to distorted flow data and increased measurement errors.
Zero drift: Long-term operation may result in zero-point shift, increasing maintenance costs and calibration frequency.
Safety hazards: Electrostatic accumulation due to grounding failure may damage the instrument or cause safety incidents.
4. Recommendations
Confirm whether the flowmeter is equipped with built-in grounding electrodes by checking the technical manual or nameplate.
If no built-in electrodes are present, install grounding rings at both ends and connect them to the instrument's grounding terminal.
If built-in electrodes exist, verify the integrity of the internal connection between the electrodes and the grounding terminal.
Use shielded cables, separate signal and power cables, and ensure proper cable fixation and protection.
5. Conclusion
The current installation is non-compliant with grounding requirements for non-metallic pipes. Immediate confirmation of the instrument's grounding design and targeted corrective actions are necessary to ensure measurement accuracy and operational safety.
