According to industry standards and technical specifications:
Inlet straight pipe section: Must start from the outlet flange of the magnetic filter and have a minimum length of 5DN (DN = nominal diameter of the flowmeter).
Outlet straight pipe section: Typically requires a minimum length of 250 mm or 1–3DN to ensure stable flow conditions.
Flow direction: The rotameter must be installed vertically, with fluid flowing from bottom to top.
Upstream/downstream fittings: Avoid installing elbows, valves, or other fittings that cause flow turbulence immediately before or after the flowmeter.
2.Diagnosis of On-Site Installation Issues

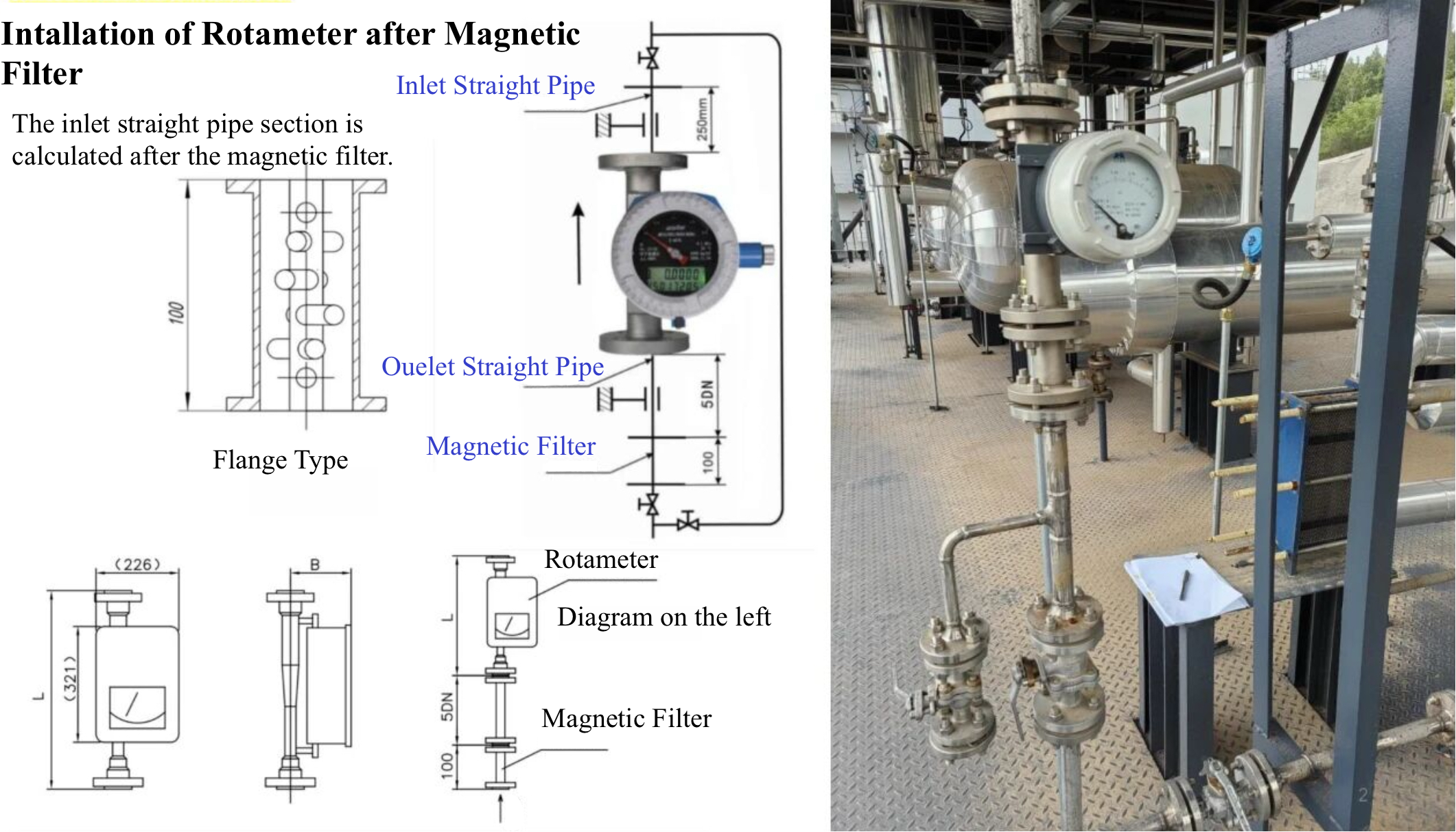

From the on-site photograph, the following critical issues are evident:
Insufficient inlet straight pipe length
The valves, elbows, and connecting pipes directly below the flowmeter are extremely close, falling far short of the "5DN from the magnetic filter" requirement. This causes turbulent flow and uneven velocity distribution before the fluid enters the meter, directly compromising measurement accuracy.
Proximity of flow disturbance sources
Valves and elbows are located immediately upstream of the flowmeter. These fittings create flow bias and secondary flows, disrupting the stable flow field required for accurate measurement and leading to abnormal rotor behavior.
Non-compliant layout
The design principle of "filter first, stabilize flow, then measure" is violated. Valves and instruments are densely packed around the flowmeter, with no sufficient straight pipe transition between the magnetic filter and the flowmeter.
3. Impact and ConsequencesReduced measurement accuracy: Turbulent flow causes unstable rotor rotation, resulting in measured values deviating significantly from actual flow rates, potentially exceeding the meter's allowable error range.
Shortened instrument lifespan: Unstable fluid impact accelerates wear on the rotor and bearings, increasing the risk of failure and maintenance frequency.
Process control risks: Inaccurate flow data can mislead process operations, affecting product quality and production safety.
4. Corrective Recommendations
Adjust the layout: Relocate the magnetic filter, valves, and other components to ensure the flowmeter has an inlet straight pipe section of at least 5DN.
Optimize the flow path: Add a sufficiently long straight pipe upstream of the flowmeter and avoid elbows and valves in the inlet region.
Strictly adhere to specifications: Verify the meter model and nominal diameter before installation, and strictly follow the "inlet 5DN, outlet ≥250 mm" requirements during construction.
