Analysis of improper on-site installation of an electromagnetic flowmeter, with standard installation guidelines proposed to avoid such issues and ensure accurate measurement and safe operation.

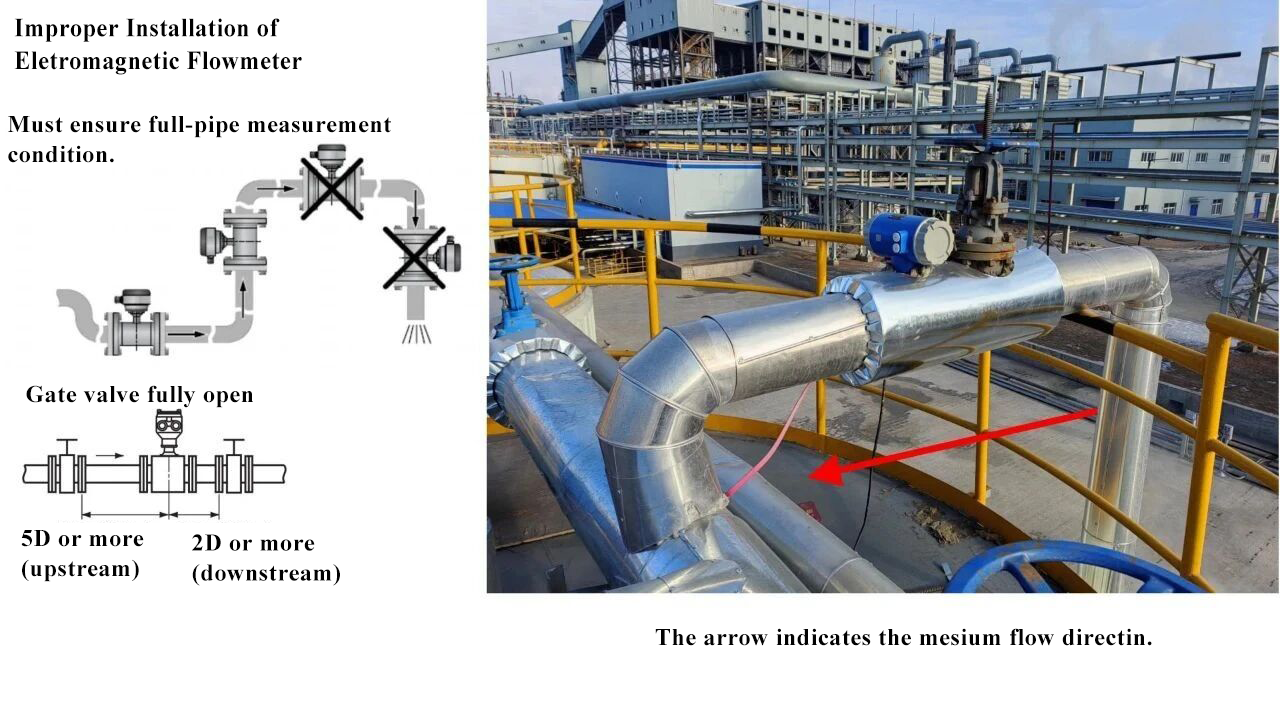

1.BackgroundThis report analyzes the installation of an electromagnetic flowmeter in the provided site photograph, focusing on compliance with industry installation standards and the potential risks of the current layout.
2.Installation Defects
2.1 Insufficient Upstream Straight Pipe Length
Issue: The flowmeter is installed immediately after an elbow (marked by the red arrow). According to standard requirements, the upstream of the flowmeter must have a straight pipe section of at least 5 times the pipe diameter (5D) to stabilize the flow profile.
Problem: The elbow disrupts the flow, creating swirls and uneven velocity distribution. This leads to significant measurement errors and unstable readings.
2.2 Risk of Non-Full Pipe Operation
Issue: The flowmeter is mounted on an upward-bending pipe section. If the medium flow rate is low, air can accumulate at the elbow, causing a non-full pipe condition.
Problem: Electromagnetic flowmeters rely on a full-pipe state for accurate measurement. A non-full pipe will cause signal distortion, resulting in inaccurate or invalid data.
2.3 Insufficient Downstream Straight Pipe Length
Issue: The downstream section of the flowmeter lacks the required 2 times the pipe diameter (2D) of straight pipe.
Problem: This can cause backflow and unstable flow, further degrading measurement accuracy and long-term stability.
3.Recommendations
1. Relocate the Flowmeter: Move the flowmeter to a position with sufficient upstream (≥5D) and downstream (≥2D) straight pipe sections, away from elbows and valves.
2. Ensure Full-Pipe Operation: Adjust the pipeline layout to avoid upward-bending sections at the flowmeter installation point, or install air vents to prevent air accumulation.
3. Verify Installation Compliance: Conduct a full-site audit to ensure all flowmeters meet the straight pipe and full-pipe requirements.
